Quiet wiring for quantum experiments.

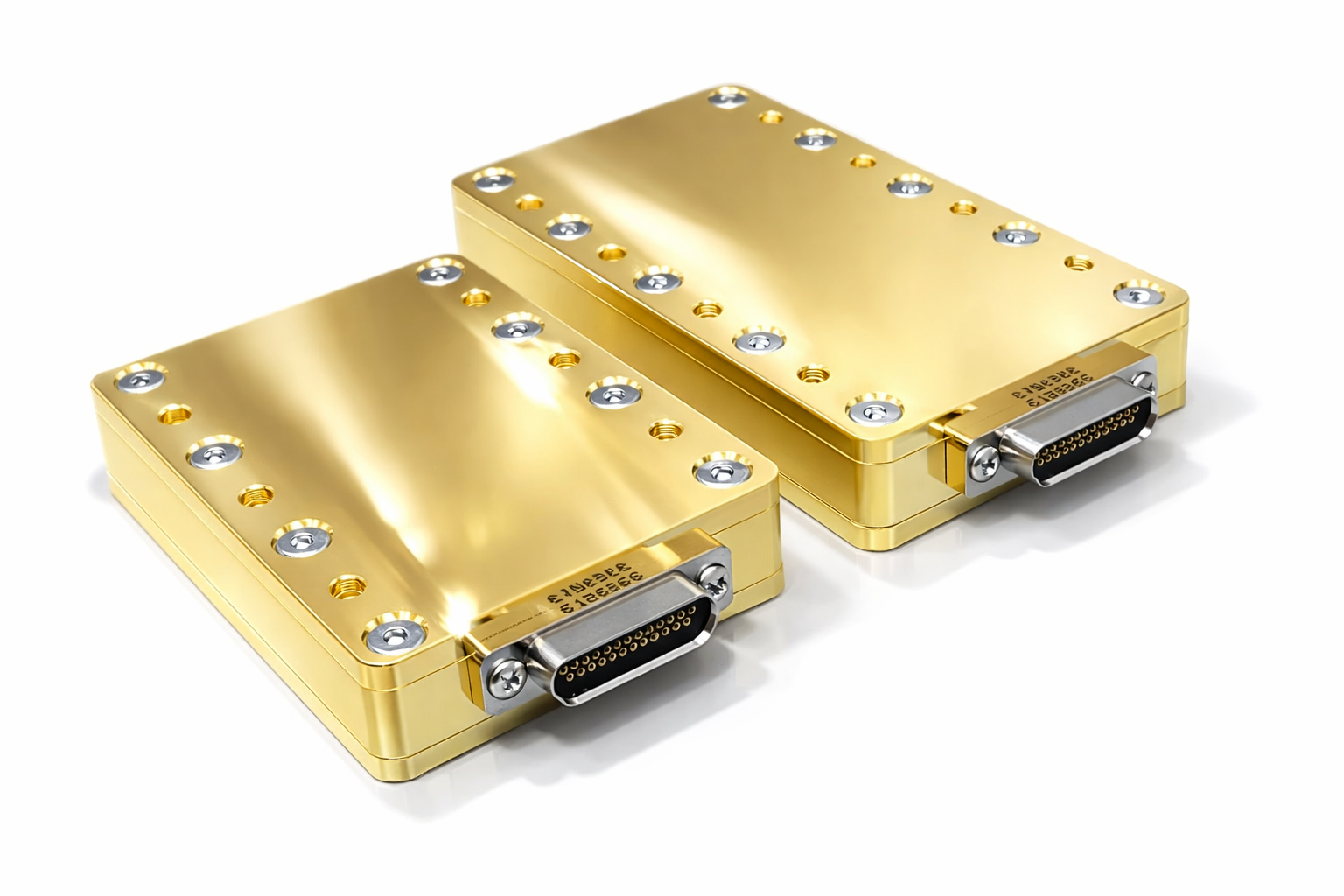

High-attenuation cryogenic microwave filtering in a compact, laboratory-proven format. Designed for reliable operation from room temperature to the millikelvin range, with strong thermalization and robust long-term performance.
Made in Japan · Custom line count, connectors, materials, and geometry available on request
Key features
- Classic distributed metal-powder filter architecture used for decades in laboratories worldwide.
- Excellent thermalization of all signal lines. Internal conductors are fully potted in thermally conductive metal-loaded epoxy with no loose powder.
- Mechanical stability under repeated thermal cycling and magnetic field cycling.
- Fully compatible with dilution refrigerators and cryogenic vacuum environments.
- Machined C1020 oxygen-free copper housing with gold plating for strong thermal anchoring and corrosion resistance.
- Compact mechanical design for mixing-chamber mounting.
Why this design
The simplicity of the classic metal-powder approach is one of its strengths: it has been adopted broadly across low-temperature experimental physics because it is robust, repeatable, and dependable over long installations.
This filter is intended for experiments that require aggressive suppression of microwave noise on DC and low-frequency wiring without sacrificing good thermalization at the cold stage.
Electrical specifications
| Transmission | Typical S21 ≤ −120 dB from 5–26.5 GHz |
| DC resistance | < 25 Ω per line |
| Capacitance | < 50 pF |
| Recommended bandwidth | DC to ~1 MHz |
Mechanical specifications
| Lines | 24 lines (12 twisted pairs) |
| Connectors | 25-pin Micro-D |
| Housing | C1020 oxygen-free copper (99.96%) with gold plating |
| Size | 90 × 50 × 14 mm Compact: 70 × 50 × 14 mm |
| Mounting | 8 × M3 holes; 40 × 20 mm pattern (center-to-center) |
Products
Metal‑powder microwave filter
High‑attenuation cryogenic RF filter for dilution refrigerator wiring and heavy microwave noise suppression.
RC low‑pass cryogenic filter
Compact multi‑stage RC filter for DC bias and sensor lines. Steep roll‑off from ~100 kHz with strong RF suppression.
Applications
Contact
For pricing, custom configurations, or technical questions, please contact us by email.
Please include your institution, application, required line count, connector preference, and any custom geometry requirements.
